Jorgensen No.5 Jack Plane

The Jorgensen has designed all new bench planes and other wood planes using premium materials and workmanship. Precisely made, fit and finished, these planes are ready right out of the box and minimum honing is required. Heavy gauge (3.0mm) Pro O1 Steel blade is more durable and provides a solid cut with minimal vibration. Ductile iron is far stronger and more resilient. Stress relieving metal ensures the machined casting will stay flat over time.

  • Heavy gauge (3.0mm) O1 blade is more durable
  • Ductile iron is far stronger and more resilient
  • Stress relieving metal ensures the machined casting will stay flat over time
  • Precision machine ground flat and square sole to a tolerance of 0.003in.(0.08mm)
  • Adjustment screw helps provide preferred cutting depths
Product # Product Name
#70735 No.5 Jack Plane
Product # Blade Material Blade Length Blade Width Blade Thickness Pitch

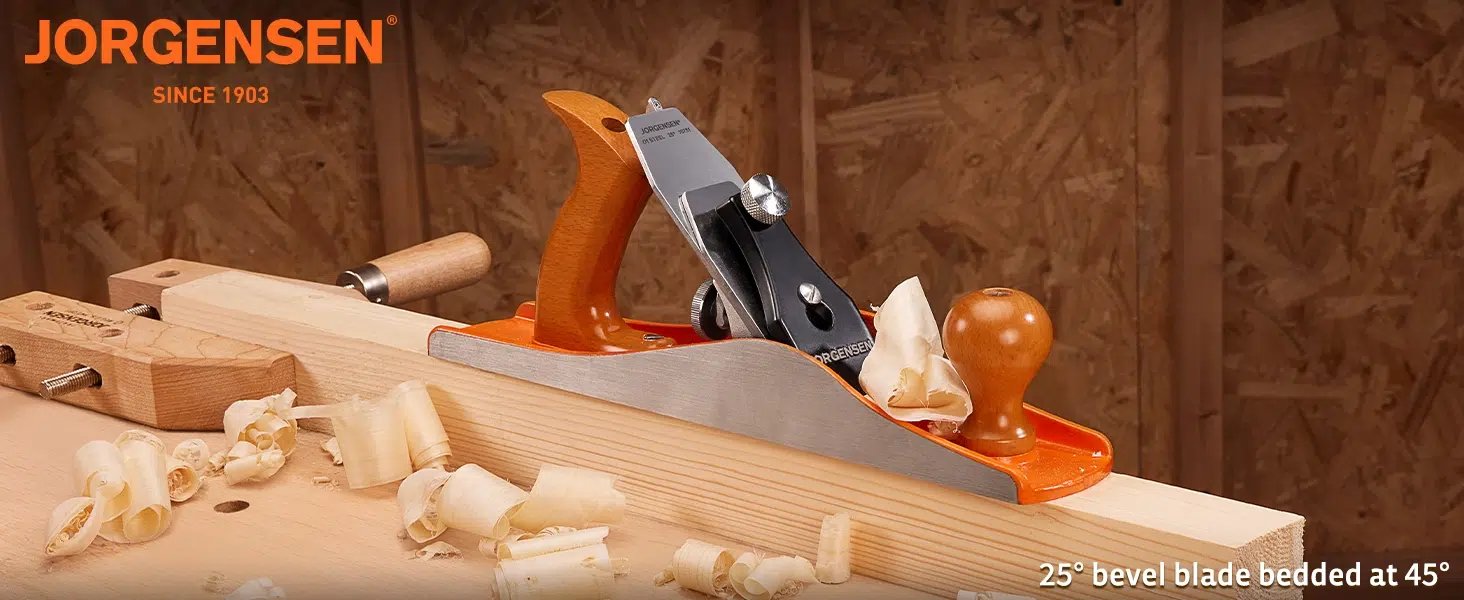

#70731 O1 Steel 176 mm (6.93") 50.8 mm (2") 3 mm (18") 25°
